Architectural Overview - VF Server running via Kubernetes Helm Offline
High-Level Overview
The vFunction Server running in a Kubernetes Cluster deployed via Helm through an Offline Registry includes the following:
- 12+ Pods running in an Kubernetes Cluster in a dedicated Namespace
- Two Persistent Volumes for MySQL and Measurements Storage
- One external Port open (80, 443, other) to listen for browser requests from end users and analysis information from the application(s)

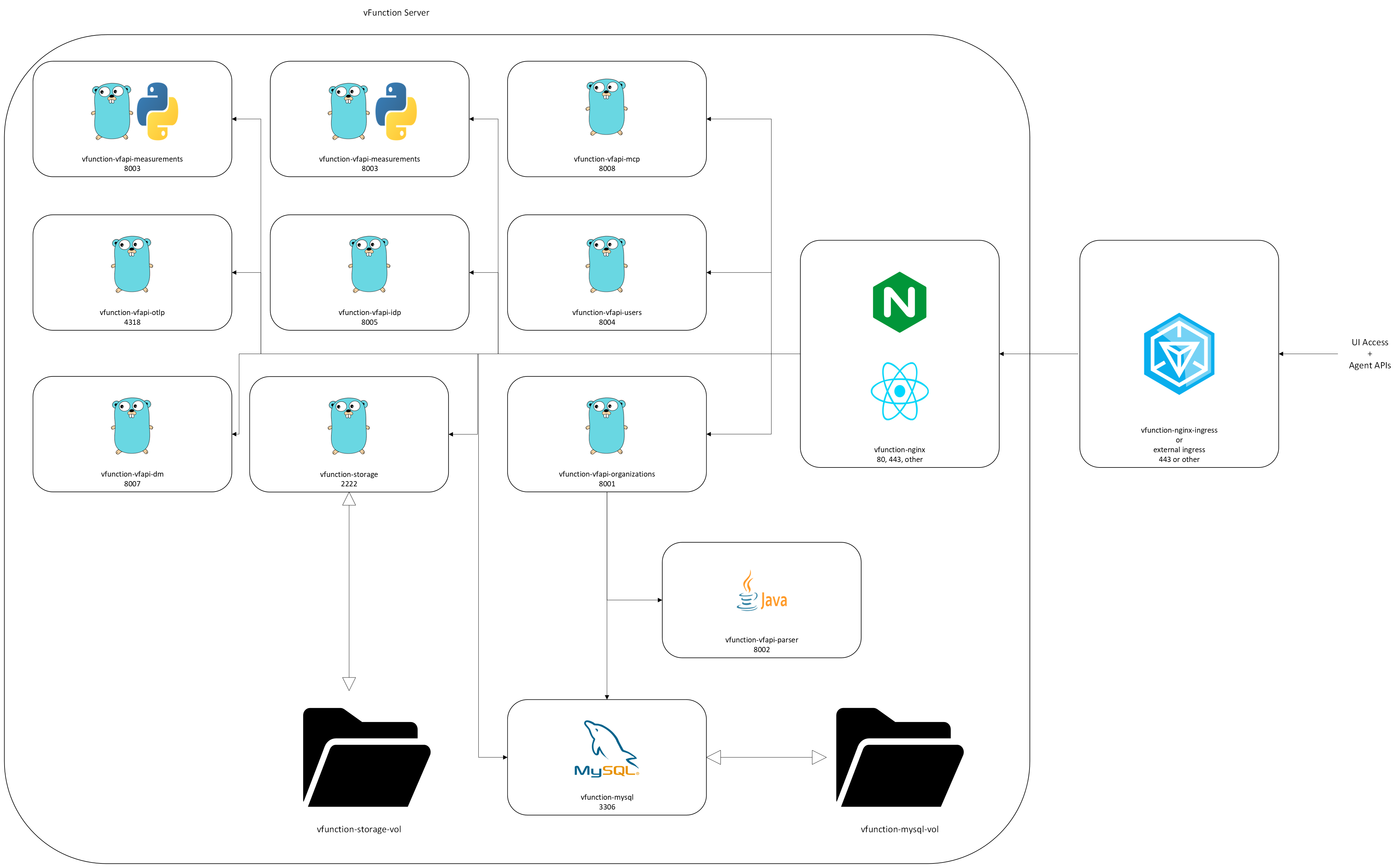

Architectural Diagram
Deployment Details
The vFunction Server includes the following Pods:
| vfunction-mysql | 1 | 3306 | Not Applicable | 4GB Configurable in the installation.yaml |
1 CPU Configurable in the installation.yaml |
vfunction-mysql-vol |
| vfunction-nginx | 1 | 8080 or 8443 | 80, 443 or a Custom Port | 1GB | 1 CPU | Not Applicable |
| vfunction-storage | 1 | 2222 | Not Applicable | 1GB | 1 CPU | vfunction-storage-vol |
| vfunction-vfapi-dm | 1 Can scale up to 10 |
8007 | Not Applicable | 8GB Configurable in the installation.yaml |
1 CPU Configurable in the installation.yaml |
Not Applicable |
| vfunction-vfapi-idp | 1 | 8005 | Not Applicable | 1GB | 1 CPU | Not Applicable |
| vfunction-vfapi-mcp | 1 | 8008 | Not Applicable | 1GB | 1 CPU | Not Applicable |
| vfunction-vfapi-measurements | 2 Can scale up to 10 |
8003 | Not Applicable | 8GB Configurable in the installation.yaml |
1 CPU Configurable in the installation.yaml |
Not Applicable |
| vfunction-vfapi-organizations | 1 | 8001 | Not Applicable | 1GB | 1 CPU | Not Applicable |
| vfunction-vfapi-otlp | 1 Can scale up to 10 |
4318 | Not Applicable | 8GB Configurable in installation.yaml |
1 CPU | Not Applicable |
| vfunction-vfapi-parser | 1 | 8002 | Not Applicable | 1GB | 1 CPU | Not Applicable |
| vfunction-vfapi-users | 1 | 8004 | Not Applicable | 1GB | 1 CPU | Not Applicable |
Persistent Volumes
The vFunction Server includes the following Persistent Volumes:
- vfunction-mysql-vol
- vfunction-storage-vol
The vfunction-mysql-vol is mounted to the vfunction-mysql Pod. This Volume is used for storing the MySQL Database used by the vFunction Server. This Volume is maintained by the vFunction installation and upgrade processes, including nightly backups which are stored on the vfunction-mysql-vol.
The vfunction-storage-vol is mounted to the vfunction-storage-vol Pod. This Volume is used for storing Monolithic and Distributed Measurements, the metadata used to provide Analysis for a vFunction Application. This Volume is maintained by the vFunction installation and upgrade processes, with Measurements backups downloadable from the vFunction Server UI.
Traffic Legend
External over open Port
End Users to Server
End Users access the Server via a Browser. Standard REST APIs are used to retrieve and update organization, application and measurement information and structure.
Agents to Server
The Agents send standard REST APIs to stop and start Learning and to upload Application details to the vFunction Server for analysis.
Internal over Kubernetes Namespace’s Network
Nginx to API Containers
The Nginx Container forwards APIs from the browser or from Agents to the relevant services over Ports 8001, 8003, 8004, 8005, 8006 and 8007.
API Containers to MySQL Container
The API Containers send request to store and process all processed information.
Organizations API Container to SQL Parser Container
The Organizations API Container sends request to the SQL Parser Container to parse queries retrieved from .NET agents.
Measurements API Container to Storage Volume
The Measurements API Container sends requests to store and retrieve raw data to the Storage Container and its Persistent Volume.
Distributed Measurements API Container to Storage Volume
The Distributed Measurements API Container sends requests to store and retrieve raw data to the Storage Container and its Persistent Volume.
Information gathered by vFunction from the Application
The vFunction Monolithic Agent gathers information about the Application and sends that information to the vFunction Server for analysis. That information contains statistical and structural data based on the Application’s behavior, including:
- Callstacks
- Field, method and class names
- External HTTP Connection data (IP Addresses, Hostnames)
- File names
- DB Query Metadata (Tables and Stored Procedures)
